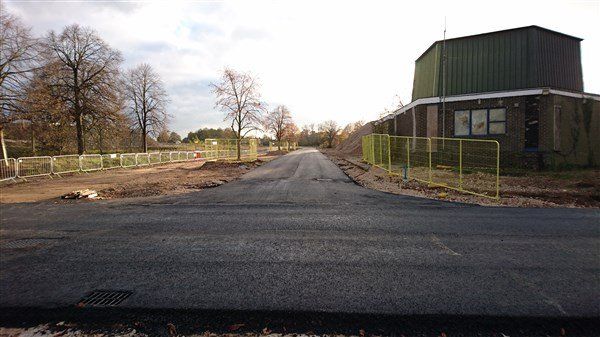

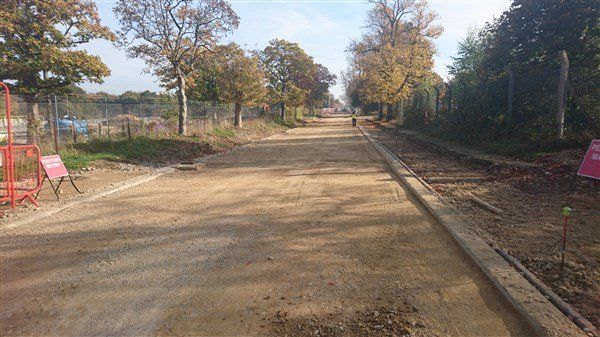

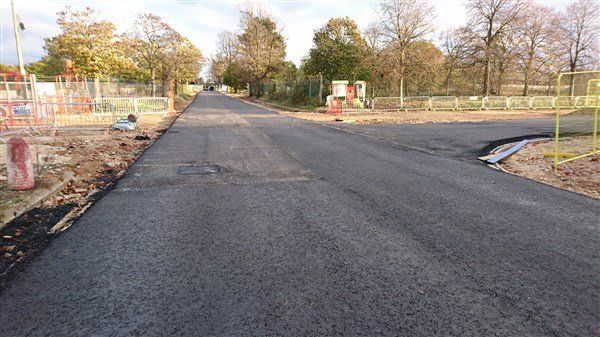

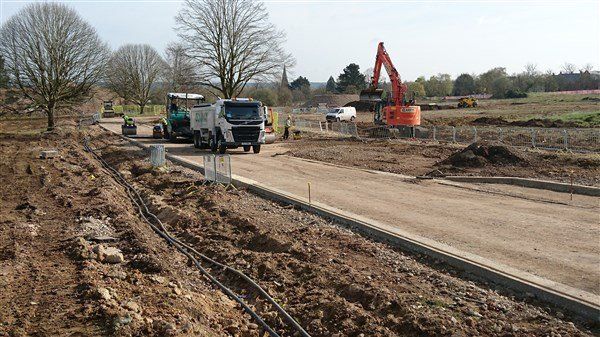

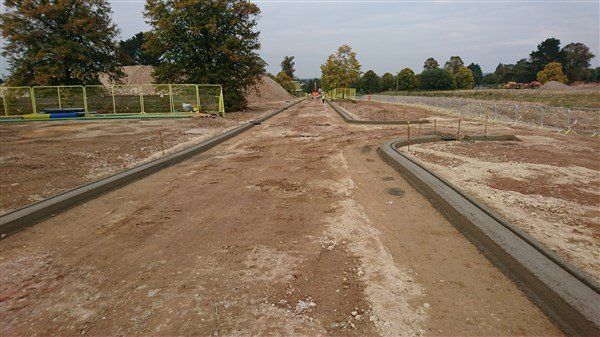

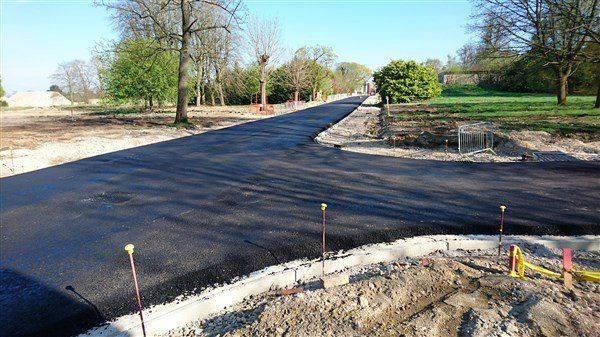

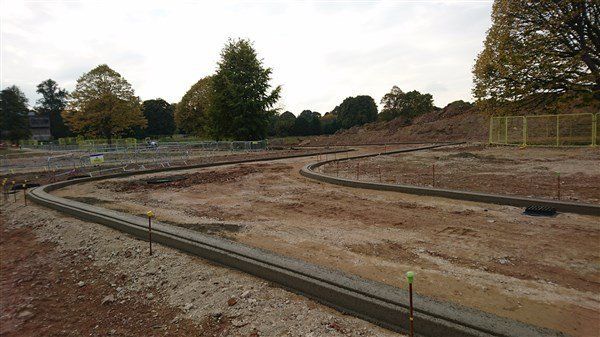

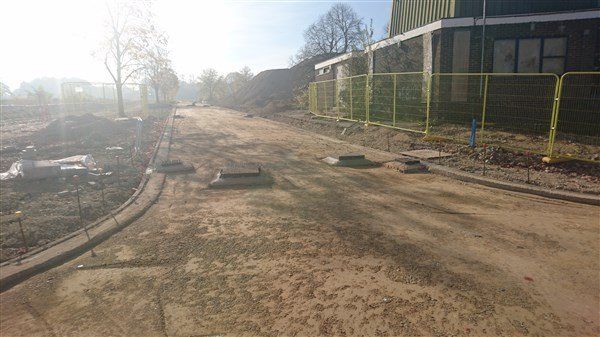

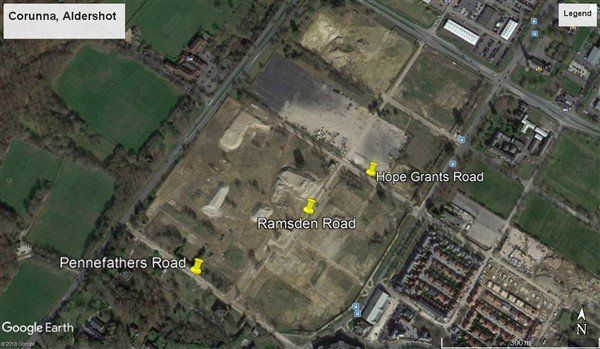

Infrastructure (drainage, roads, footpaths, services etc) for Corunna which is phase 2 of the Wellesley, development at Aldershot. 5 no roads totalling 900 linear metres , with numerous belmouths off. There are 40 odd crossings, 75 gullies, surface and foul drainage ranging from 150 - 900mm diameter, 1200 - 1800mm diameter manholes upto 3m deep. The road is to be adopted by Hampshire County Council and drainage works adopted by Seven Trent Water.

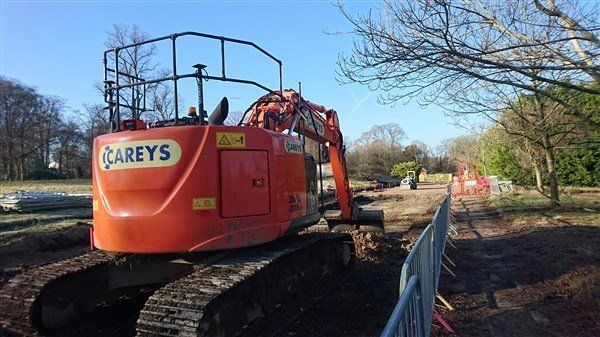

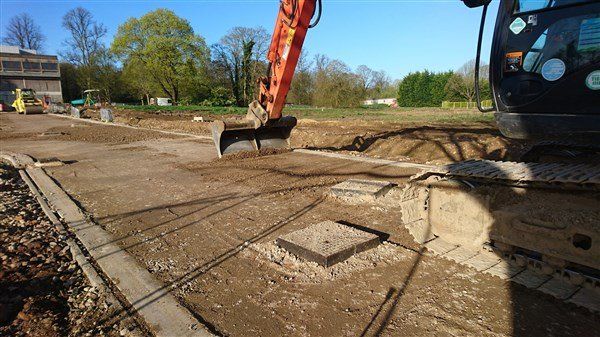

I am responsible for all setting out, engineering control and surveys. I am using a trusty Leica TS15 with the Viva controller. We trialled 3d gps machine control and I have created the 3d models for the GPS machine control system, (we used leica & Topcon),  I upload to the machine, which made our life so much easier. I am constantly checking that we are in the same ballpark and it is. I am responsible for ensuring the data is current and correct, that the machine works, and modifying to make it easy for the operator to use. We are using it for the reduced level dig, the stoning up, the service crossings etc etc. Mick the driver who was originally against the system "why do i need this i've been driving machines for 20 years?" now loves it as it gives him more control. His 22t machine is the busiest on site.

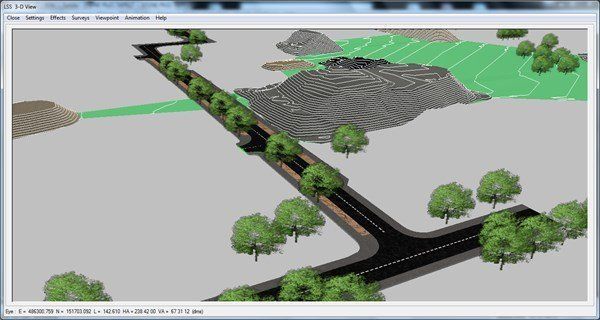

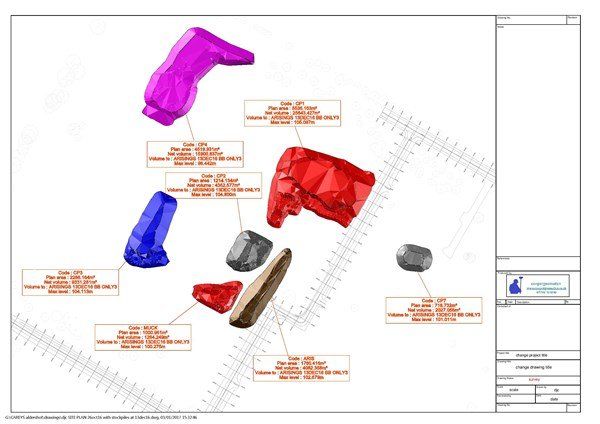

There are numerous stockpiles of recycled 6f2 which used to be the old army barracks, which i have surveyed their volumes and monitor how much we are using.
